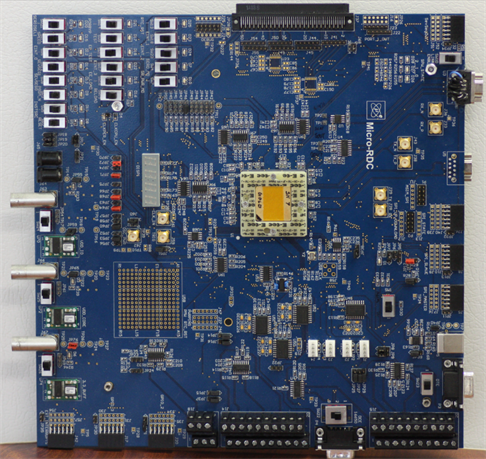

KM-807701 SoC Development Board and At Speed FPGA Emulation
Development Board Capabilities
  • LGA 484 Socket
  • Separate supplies for Core (1.2V), Chip IO (2.5V-3.3V) and Peripherals (2.5V-3.3V)
  • Current monitoring of all supplies
  • Single 5V supply support
  • Support for 16 input and 16 output signals
  • Support for 16 GPIO signals
  • Space Wire external LVDS Drivers and Receivers and Socket
  • 4x RS-422 Drivers and Receivers
  • Debounced switches for reset, SPI Download, manual Bootup, automatic Bootup, interrupts
  • Differential LVDS lines and SpaceWire connector for on-chip LVDS support
  • Program Counter for logic analyzer monitoring and debug
  • RS-232 DCE and DTE (with RTS/CTS hardware flow control)
  • USB Physical Layer and 48 MHz clock
  • SMA CPU Clock input
  • Dual I2C Bus interface
  • On Board ATMEL Flash (128Kx8) for Bootup and XTEDS
  • Connectors for SPI Firmware download/upload via USB/SPI interface to PC
  • 4 digit Seven Segment display for debug and software development
  • SpaceWire state monitoring
  • Support for SPI Master and Slave using PMODs (12 pin)
  • Prototype Area
FPGA 50 MHz Clock Development Support
  • Use Micro-RDC SoC bitstream
  • Xilinx Spartan 3E 1200 Running at 50 MHz
  • Support for Digilent Nexys2™ and Genesys™ Virtex-5 Development Boards
  • Modules (PMOD™)
  • SpaceWire LVDS, Dual I2C Bus Support, 1 Mbit NVM Bootup/XTEDS
  • RS-422 Tx and Rx
LIST PRICE $7,495

Nexys2™, Genesys™ and PMOD™ are trademarks of Digilent, Inc.
Block Diagram
MySoftware Development Support for the KM-807701 SoC
  • Full Support for Keil C and Assembly Firmware Development (Separate License Required for Keil)
  • C API for Spacewire, I2C and SPI EEPROM
  • Support for Keil TinyOS
  • Macro Assembler 8051
  • Firmware Download to Silicon via USB/SPI Interface
  • Program Counter Available for Debugging in Real Time multi-line text
