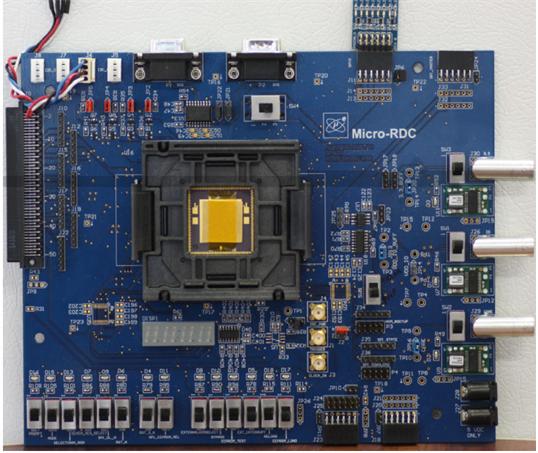

KM-803301 SoC Development Board and At Speed FPGA Emulation
Development Board Capabilities

  • 172 pin CQFP Socket
  • Separate supplies for Core (1.2V), Chip IO (3.3v) and Peripherals (3.3V)
  • Current monitoring of all supplies
  • Single 5V supply support
  • Support for 8 GPIO signals
  • 4x RS-422 Drivers and Receivers
  • Debounced switches for reset, SPI Download, manual Bootup, automatic Bootup, interrupts
  • Program Counter for logic analyzer monitoring and debug
  • RS-232 DCE and DTE
  • SMA CPU Clock input
  • Dual I2C Buss interface
  • On Board ATMEL Flash (128Kx8) for Bootup and XTEDS
  • Connectors for SPI Firmware download/upload via USB/SPI interface to PC
  • 4 digit Seven Segment display for debug and software development
  • Support for SPI Master and Slave using PMODs (12 pin)
FPGA 50 MHz Clock Development Support
  • Xilinx Spartan 3E 1200 Running at 50 MHz
  • Support for Digilent Nexys2™ and Genesys™ Virtex-5
  • Development Boards
  • Modules (PMOD™)
  • SpaceWire LVDS, Dual I2C Bus Support, 1 Mbit NVM Bootup/XTEDS
  • RS-422 Tx and Rx

Nexys2™, Genesys™ and PMOD™ are trademarks of Digilent, Inc.
MySoftware Development Support for the KM-803301 SoC
  • Full Support for CCS C and Assembly Firmware Development
  • C API for Serial, I2C and SPI EEPROM
  • Firmware Download to Silicon via USB/SPI Interface
  • Program Counter Available for Debugging in Real Time
