KM-807704; Temporal LatchTM SEU Immune RHBD 90nm CMOS 32 Bit RISC SoC
Electronic integrated circuits providing radiation hardening for digital logic architecture
Specifications:
32-Bit RISC CPU
Dual Voltage Supply 1.2V Core and 1.2V to 2.5V I/O
32-Bit RISC CPU
- 50 MHz Clock
- Based on Open Cores SoC
- 256Kx8 Program Space (EDAC Protected)
- 16Kx8 Data RAM
- 2 x 16650 UARTS Full HW Flow Control/FIFO
- 6 x PWM/Counter/Capture (32 bit)
- 32 Bidirect GPIO
- WDT
- I2C Master/Slave
- I2C Master
- SPI Master with 5 Chip Selects
- Firmware Download (SPI)
- SPI Bootup External SPI NVM
- GCC Tool Chain
- 7mm X 7mm
- 406 Total Pins
- 248 CMOS Pins
- 64 um Pad Pitch
- 50 um X 50 um Pad Size
Dual Voltage Supply 1.2V Core and 1.2V to 2.5V I/O
RHBD IBM 9LP 90nm CMOS
- Total Ionizing Dose: Within specifications after exposure to greater than 1Mrad(Si)
- Single Event Latch Up: Latchup immune to 80 MeV-cm2/mg
- SRAM Error Rate: Supports scrubbing program SRAM to obtain desired error rates
- Single Event Transient: Implements the Temporal Latch-based flip flops to mitigate transient pulse widths of up to 1ns

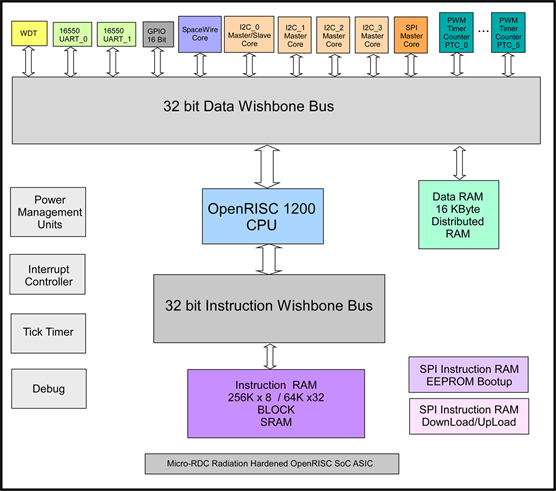

Block Diagram
This effort is sponsored by the Air Force Research Laboratory (AFRL).
